32 250 грн. – 41 850 грн.
Explanation of each symbol of the electric furnace name СНОЛ-13/1100:
ТУ У 28.2-30676394-002:2018
(Designation structure according to TS)
C – resistance – the type of heating;
Н – chamber – a constructive feature;
О – oxidative – workspace environment;
Л – laboratory;
13 – volume of working space in cubic dm (liters);
1100 – the nominal temperature in °C.
Description
СНОЛ-13/1100 Muffle furnace is designed for analytical work with various materials and different types of heat treatment at temperatures up to 1100 °C.
Temperature controller
The muffle furnace is equipped with microprocessor or programmable temperature controller. The microprocessor temperature controller has a power adjustment function, which is especially important when the furnace is operating at low temperatures.
Working chamber
The working chamber s made of fiber, and the door seals are made of high-performance thermal insulation. The lightweight materials of the furnace chamber allow the heat treatment process to be carried out with low installed power.
Chamber heating
Chamber heating is performed on two sides, the material of the heaters is kanthal. A limit switch is installed, which allows to de-energize the working chamber when the door is opened.
The case
The case of the furnace is made of sheet steel, powder coated on a special polymer coating line, which gives the surface an original look and durability in operation.
The electric furnace is equipped with deck plate.
The electric furnace door has an opening for the control thermocouple input.
Additionally the furnace can be equipped with a computer data acquisition system.
Video review of the furnace
Specifications
| No. p / p | Name of technical specification | Unit | Value |
|---|---|---|---|
| 1. | Rated power, less than | kW | 2,0 |
| 2. | Idle power, no more | kW | 2,0 |
| 3. | Supply voltage | V | 230 |
| 4. | AC frequency | Hz | 50 |
| 5. | Number of phases | 1 | |
| 6. | Rated working space temperature | °С | 1100 |
| 7. | Automatic temperature control range | °С | 1100 |
| 8. | Temperature stability in stable thermal conditions* at the measurement point, without charge, not worse | °С |
±4 |
| 9. | Workspace environment | air | |
| 10. | Electric furnace warm-up time to nominal temperature without charge, less than | min | 180 |

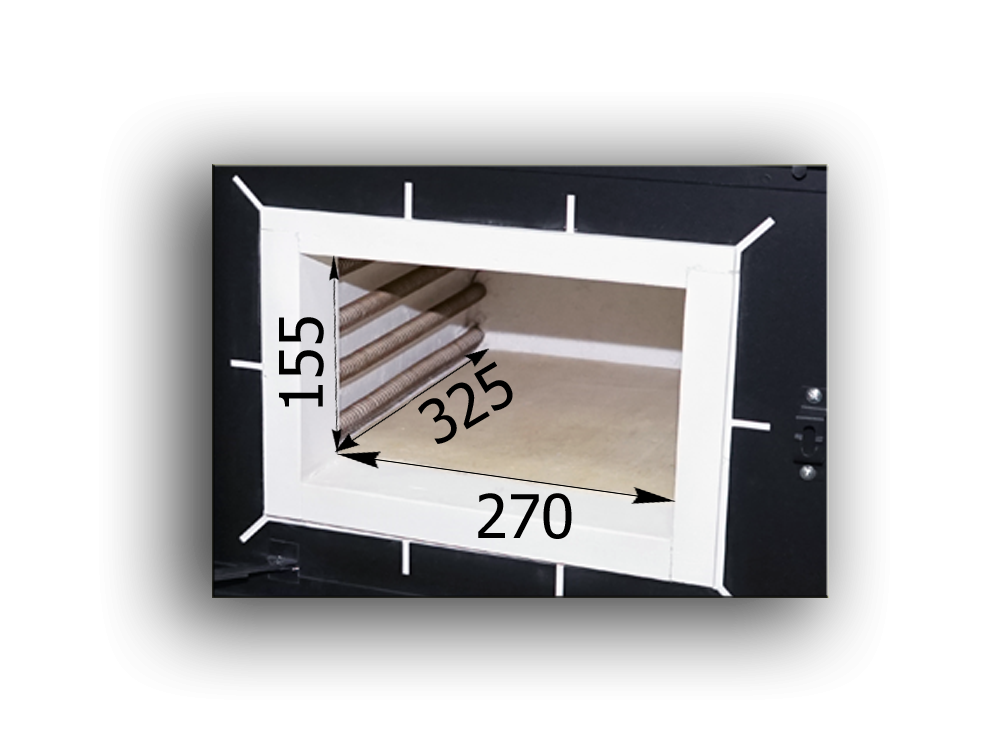

| 11. | Dimensions of the working chamber, not less than: width x length x height | mm | 270х325х155 |
| 12. | Overall dimensions, less than: width x length x height | mm | 540х640х560 |
| 13. | Weight, less than | kg | 56 |
* A stable thermal regime occurs after holding for at least 60 minutes at the set temperature, without the presence of external disturbances (opening doors, changing the temperature setting, changing the mains voltage, etc.)
Package contents
Electric furnace СНОЛ 13/1100
Items removed from the electrical furnace for transportation:
- deck plate – 2 pcs.
Spare parts:
- fusible insert for 1A – 1 pc.
- fusible insert for 13A – 1 pc.
Operational documentation:
- passport for the electric furnace.
- certificate for temperature controller
Other models
| Name | Т nom, °С | Power, kW / number of phases | Working chamber | |
|---|---|---|---|---|
| Size, mm | Material | |||
| СНОЛ 6,7/1300 | 1300 | 1,7 / 1 | 160х320х130 | fiber |
| СНОЛ 7,2/900 | 900 | 3,3 / 1 | 190х290х133 | ceramics |
| СНОЛ 7,2/900 ВО | 900 | 3,3 / 1 | 190х290х133 | ceramics |
| СНОЛ 7,2/1100 | 1100 | 3,3 / 1 | 190х290х133 | ceramics |
| СНОЛ 7,2/1100 ВО | 1100 | 3,3 / 1 | 190х290х133 | ceramics |
| СНОЛ 7,2/1300 | 1300 | 3,3 / 1 | 190х290х133 | ceramics |
| СНОЛ 8,2/1100 | 1100 | 2,0 / 1 | 200х315х130 | fiber |
| СНОЛ 13/1100 | 1100 | 2,0 / 1 | 270х325х155 | fiber |
| СНОЛ 15/900 | 900 | 3,9 / 1 | 250х300х200 | ceramics |
| СНОЛ 15/1100 | 1100 | 3,9 / 1 | 250х300х200 | ceramics |
| СНОЛ 15/1300 | 1300 | 3,9 / 1 | 250х300х200 | ceramics |
| СНОЛ 20/1100 | 1100 | 3,2 / 1 | 270х500х170 | fiber |
| СНОЛ 30/1100 | 1100 | 7,5 / 3 | 300х420х250 | ceramics |
| СНОЛ 30/1100 with closed heater | 1100 | 7,5 / 3 | 300х420х250 | ceramics |
| СНОЛ 30/1300 | 1300 | 7,5 / 3 | 300х420х250 | ceramics |
| СНОЛ 40/1100 | 1100 | 3,4 / 1 | 300х450х300 | fiber |
| СНОЛ 40/1300 | 1300 | 4,6 / 1 | 300х450х300 | fiber |
| СНОЛ 54/1100 | 1100 | 12,0 / 3 | 300х600х300 | brick |
| СНОЛ 54/1200 | 1200 | 12,0 / 3 | 300х600х300 | brick |
| СНОЛ 80/1100 | 1100 | 7,5-9,0 / 3 | 400х400х500 | brick |
| СНОЛ 80/1200 | 1200 | 9,0-12,0 / 3 | 400х400х500 | brick |
| СНОЛ 81/1100 | 1100 | 12,0 / 3 | 300х900х300 | brick |
Dimensions
Warranty
The manufacturer provides a warranty for the product for 12 months. Warranty on the control unit – 18 months, on the thermoregulator series TermoPro® – 50 months.
