Explanation of each symbol of the electric furnace name СНОЛ-100/350:
ТУ У 31.6-30673694.001-2002
(Designation structure according to TS)
C – resistance – the type of heating;
Н – chamber – a constructive feature;
О – oxidative – workspace environment;
Л – laboratory;
100 – volume of working space in cubic dm (liters);
350 – the nominal temperature in °C.
Description
Polymerization furnace / Drying cabinet СНОЛ-100/350
СНОЛ-100/350 – A unique drying cabinet is designed for drying various materials, for analytical work with various materials and different types of heat treatment at temperatures up to 350 °C, and also for melting polymer coatings produced by the powder method.
Temperature controller
The drying cabinet is equipped with an analog, microprocessor or programmable temperature controller.
An analog regulator is used if there are no high requirements for the accuracy of temperature maintenance.
The microprocessor temperature controller has a power adjustment function, which is especially important when the furnace is operating at low temperatures.
The controller allows you to adjust the heating/cooling speed and heating time.
The case
The case of the drying cabinet is made of sheet steel, powder coated on a special polymer coating line, which gives the surface an original look and durability in operation.
Door seal
Door seal is made of special heat-resistant rubber and, together with the design of the door fastening, creates the possibility of avoiding a loose fit, and provides good thermal insulation of the working chamber.
Working chamber
It is made of specially coated black steel or stainless steel.
Fan:
An air mixing fan is installed in the back of the working chamber, which creates a high uniformity of the thermal field inside the chamber.
Chamber heating
Chamber heating carried out from all sides, and for this purpose the original tape heater is used.
Any drying cabinet has an opening for a control thermocouple or thermometer input.
Specifications
| No. p / p | Name of technical specification | Unit | Value |
|---|---|---|---|
| 1. | Rated power, less than | kW | 4,0 |
| 2. | Idle power, no more | kW | 2,5 |
| 3. | Supply voltage | V | 230 |
| 4. | AC frequency | Hz | 50 |
| 5. | Number of phases | 1 | |
| 6. | Rated working space temperature | °С | 350 |
| 7. | Automatic temperature control range | °С | 50-350 |
| 8. | Temperature stability in stable thermal conditions* at the measurement point, without charge, not worse | °С |
±2,0** (5,0)*** |
| 9. | Temperature irregularity over the volume of the working space in the measuring point, without cage, not more than | °С |
±7,0** 10*** |

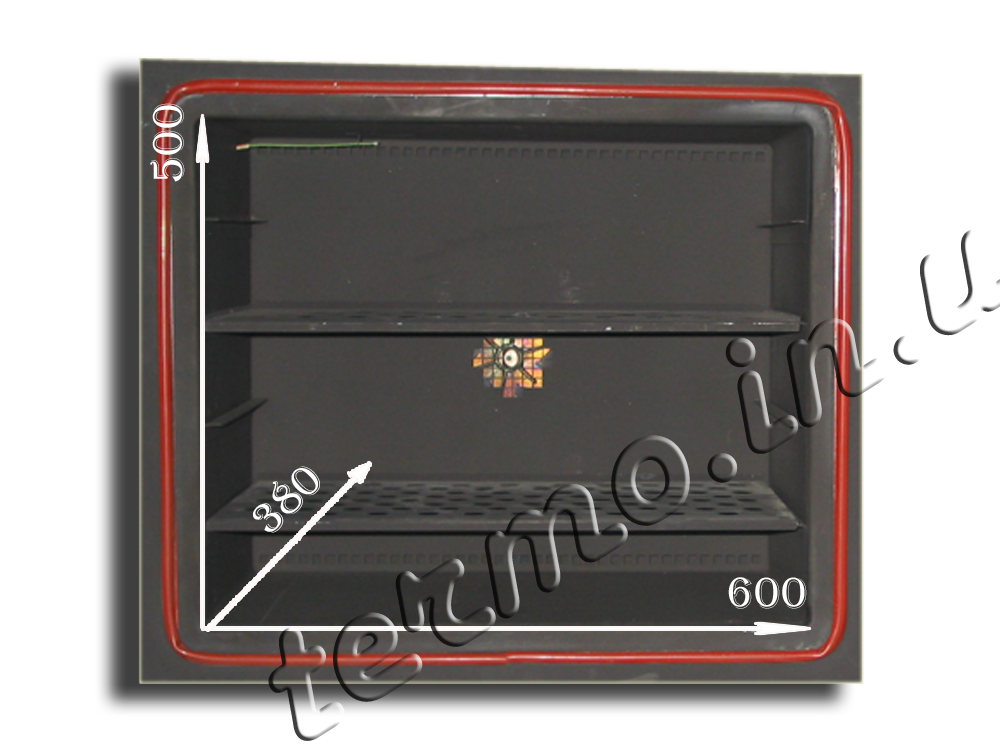

| 10. | Workspace environment | air | |
| 11. | Electric cabinet warm-up time to nominal temperature without charge, less than | min | 60 |
| 12. | Dimensions of the working chamber, not less than: width x length x height | mm | 600х380х500 |
| 13. | Working space size, not more than width x length x height | mm | 550х380х480 |
| 14. | Overall dimensions, less than: width x length x height | mm | 685х890х700 |
| 15. | Weight, less than | kg | 55 |
* A steady thermal regime occurs after holding for at least 60 minutes at the set temperature, without the presence of external disturbances (opening doors, changing the temperature setting, changing the mains voltage, etc.)
** for TermoPro 611 controller.
*** for TermoPro A10 controller.
Package contents
Electric furnace СНОЛ 100/350
Items removed from the electrical furnace for transportation:
- shelves – 2 pcs.
Spare parts:
- fusible insert for 1A – 1 pc.
Operational documentation:
- passport for the electric furnace.
- certificate for temperature controller
Other models
| No. p / p | Name | Т nom, °С | Dimensions of the working chamber, not less than: width x length x height, mm | Number of fans, pcs | Design features | Power, kW |
|---|---|---|---|---|---|---|
| 1. | СНОЛ 100/350 | 350 | 600 х 380 х 500 | 1 | dead end | 4 |
| 2. | СНО-8,5.10.12/2,5 | 250 | 850 х 1000 х 1200 | 1 | dead end | 24 |
| 3. | СНО-10.15.15/2,5 | 250 | 1000 х 1500 х 1500 | 1 | dead end | 36 |
| 4. | СНО-10.25.15/2,5 | 250 | 1000 х 2500 х 1500 | 2 | pass-through | 36 |
| 5. | СНО-12.20.18/2,5 | 250 | 1200 х 2000 х 1800 | 2 | pass-through | 42 |
| 6. | СНО-10.35.15/2,5 | 250 | 1000 х 3500 х 1500 | 3 | pass-through | 42 |
| 7. | СНО-14.25.20/2,5 | 250 | 1400 х 2500 х 2000 | 2 | pass-through | 48 |
| 8. | СНО–12.35.20/2,5 | 250 | 1200 х 3500 х 2000 | 3 | pass-through | 50 |
| 9. | СНО-18.40.20/2,5 | 250 | 1800 х 4000 х 2000 | 3 | pass-through | 75 |
| 10. | СНО-10.65.20/2.5 | 250 | 1000 х 6500 х 2000 | 4 | pass-through | 60 |
| 11. | СНО-10.85.20/2,5 | 250 | 1000 х 8500 х 2000 | 5 | pass-through | 60 |
Custom-made powder coating curing furnaces in all sizes.
Warranty
The manufacturer provides a warranty for the product for 12 months. Warranty on the control unit – 18 months, on the thermoregulator series TermoPro® – 50 months.
