Explanation of each symbol of the furnace's name:
ТУ У 28.2-30676394-001:2018
(Designation structure according to TS)
C – resistance – the type of heating;
Н – chamber – a constructive feature;
О – oxidative – workspace environment;
Л – laboratory;
100 – volume of working space in cubic dm (liters);
200 – the nominal temperature in °C.
И – execution;
4 – with forced mixing;
б – packaging with polyethylene;
В – with controlled air exchange.
** The prices are valid subject to the signing of the product supply agreement in the version of the Manufacturer (seller). All prices include VAT.
Description
Drying cabinet СНОЛ 100/200-И4бВ
СНОЛ 100/200-И4бВ – is a cabinet of a new line of drying cabinets SERIES 300.
The drying cabinet is designed for drying materials, including those that emit combustible substances when heated (solvent vapors) under stationary conditions at temperatures up to 200 °C.
Temperature controller: the drying cabinet is equipped with a microprocessor or programmable temperature controller.
The case of the drying cabinet is made of sheet steel, powder-coated on a special polymer coating line, which gives the surface an original look and durability in operation. Powder coating is resistant to solvents, alkalis, and acids.
The door seal is made of special heat-resistant rubber and, together with the design of the door fastening, creates the possibility of avoiding a loose fit and provides good thermal insulation of the working chamber.
A working chamber made of black steel with a special coating, or stainless steel, allows solving all the issues that arise for the user of our products. The chamber is completed with regiments that can be easily removed and installed at any point in the working chamber.
Chamber heating is carried out from all sides. For this purpose, the original tape heater is used.
Any drying cabinet has an opening for a control thermocouple or thermometer input.
Specifications
| No. p / p | Name of technical specification | Unit | Value |
|---|---|---|---|
| 1. | Rated power, less than | kW | 4,5 |
| 2. | Supply voltage | V | 230 |
| 3. | AC frequency | Hz | 50 |
| 4. | Number of phases | 1 | |
| 5. | Rated working space temperature | °С | 150 |
| 6. | Automatic temperature control range | °С | 50-200 |
| 7. | Temperature stability in stable thermal conditions* at the measurement point, without charge, not worse | °С | ±2,0 |
| 8. | Limits of permissible temperature deviation in the working space in the temperature range in a stable thermal regime, without charge, as the difference between Tmax and Tmin (deviation from the average value), not worse | °С | 10,0 (± 5,0) |
| 9. | Workspace environment | air | |
| 10. | Electric cabinet warm-up time to nominal temperature without charge, less than | min | 40 |

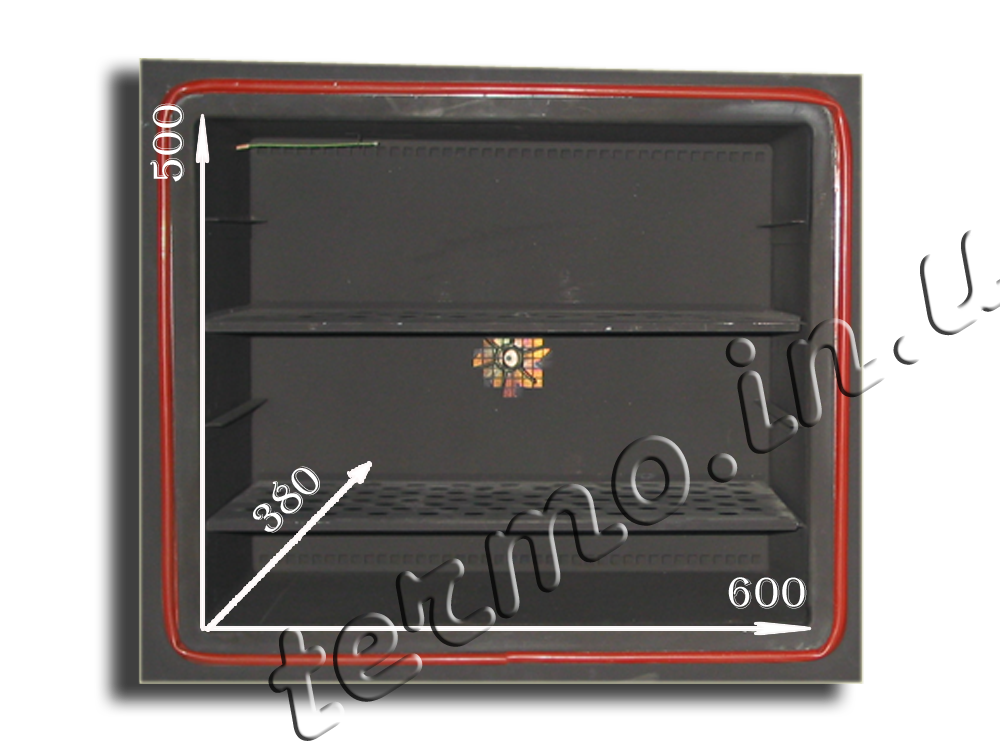

| 11. | Dimensions of the working chamber, not less than: width x length x height | mm | 600х380х500 |
| 12. | Overall dimensions, less than: width x length x height | mm | 900х700х1600 |
| 13. | Weight, less than | kg | 180 |
* A stable thermal regime occurs after holding for at least 60 minutes at the set temperature, without the presence of external disturbances (opening doors, changing the temperature setting, changing the mains voltage, etc.)
** for temperature controller TermoPro 611.
Dimensions
Package contents
Electrical cabinet СНОЛ 100/200:
Spare parts, tools and accessories of the control unit.
Spare parts, tools and accessories of the signaling device.
Operational documentation:
– a passport for a drying cabinet;
– certificate for temperature controller;
– signaling device documentation.
Other models
| Name | Т nom, °С | Power, kW / number of phases | Presence of a fan | Working chamber | |
|---|---|---|---|---|---|
| Size, mm | Material | ||||
| СНОЛ-24/200 | 200 | 1 / 1 | – | 300 х 380 х 200 | steel/stainless |
| СНОЛ-100/200 | 200 | 4 / 1 | + | 600 х 380 х 500 | steel/stainless |
| СНОЛ 20/300 | 300 | 1 / 1 | + | 300 х 340 х 200 | steel/stainless |
| СНОЛ 58/300 | 300 | 1,3 / 1 | + | 390 х 380 х 390 | steel/stainless |
| СНОЛ-75/300 | 300 | 2,2 / 1 | + | 390 х 530 х 390 | steel/stainless |
| СНОЛ-100/300 | 300 | 2,2 / 1 | + | 600 х 380 х 500 | steel/stainless |
| СНОЛ 220/300 | 350 | 3,5 / 1 | + | 600 х 620 х 600 | steel/stainless |
Warranty
The manufacturer provides a warranty for the product for 12 months. Warranty on the control unit – 18 months, on the thermoregulator series TermoPro® – 50 months.
