17 190 грн. – 31 812 грн.
Explanation of each symbol of the furnace's name:
ТУ У 28.2-30676394-001:2018
(Designation structure according to TS)
C – resistance – the type of heating;
Н – chamber – a constructive feature;
О – oxidative – workspace environment;
Л – laboratory;
24 – volume of working space in cubic dm (liters);
200 – the nominal temperature in °C.
** The prices are valid subject to the signing of the product supply agreement in the version of the Manufacturer (seller). All prices include VAT.
Description

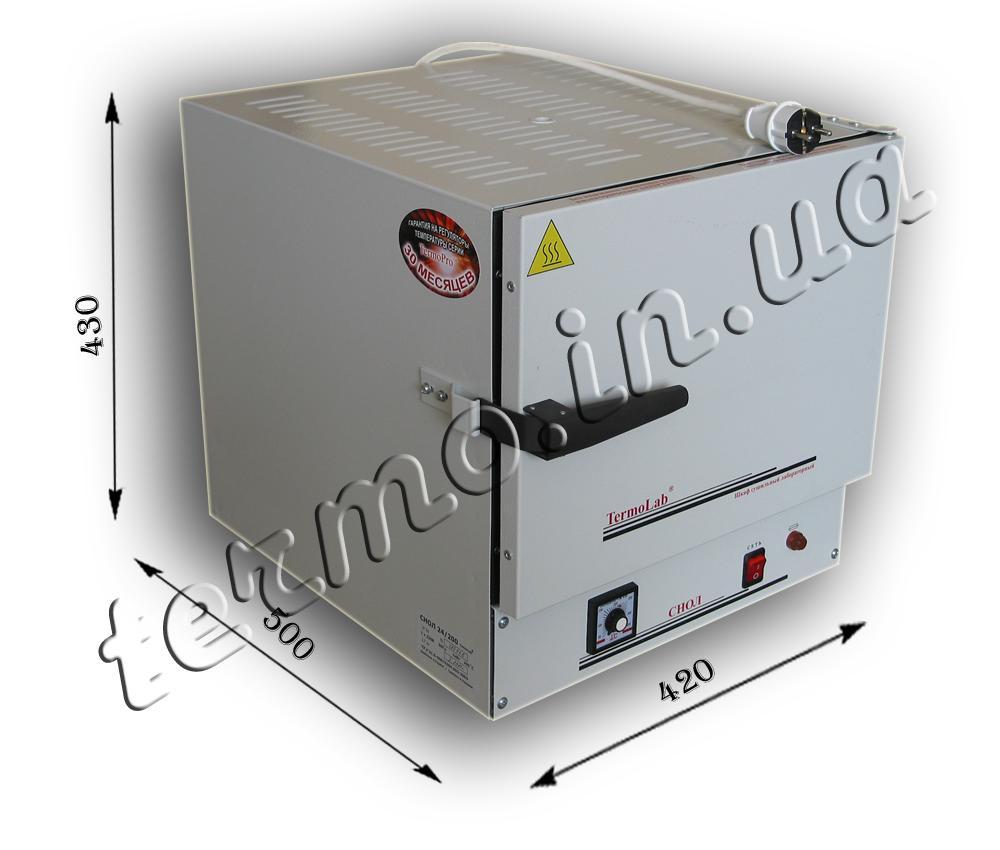

The drying cabinet СНОЛ-24/200
The drying cabinet is designed for drying various materials and carrying out analytical work at temperatures up to 350 °C.
Temperature controller
The drying cabinet is equipped with an analog, microprocessor or programmable temperature controller.
An analog regulator is used if there are no high requirements for the accuracy of temperature maintenance.
The microprocessor temperature controller has a power adjustment function, which is especially important when the furnace is operating at low temperatures.
The controller allows you to adjust the heating/cooling speed and heating time.
The case
The case of the drying cabinet is made of sheet steel, powder coated on a special polymer coating line, which gives the surface an original look and durability in operation.
Door seal
Door seal is made of special heat-resistant rubber and, together with the design of the door fastening, creates the possibility of avoiding a loose fit, and provides good thermal insulation of the working chamber.
Working chamber
Working chamber made of black steel with a special coating, or stainless steel, which allows to solve all the issues that arise for the user of our products. The chamber is completed with regiments which can be easily removed and installed in any point of the working chamber.
Chamber heating
Chamber heating carried out from all sides, and for this purpose the original tape heater is used.
Any drying cabinet has an opening for a control thermocouple or thermometer input.
Specifications
| No. p / p | Name of technical specification | Unit | Value |
|---|---|---|---|
| 1. | Rated power, less than | kW | 1,0 |
| 2. | Supply voltage | V | 230 |
| 3. | AC frequency | Hz | 50 |
| 4. | Number of phases | 1 | |
| 5. | Rated working space temperature | °С | 200 |
| 6. | Automatic temperature control range | °С | 50-200 |
| 7. | Temperature stability in stable state thermal conditions* at the measurement point, without charge, not worse | °С | ±2** (5)*** |
| 8. | Limits of permissible temperature deviation in the working space in the temperature range in a stable thermal regime, without charge, as the difference between Tmax and Tmin (deviation from the average value), not worse | °С | 30 (± 15) |
| 9. | Workspace environment | air | |
| 10. | Electric cabinet warm-up time to nominal temperature without charge, less than | min | 20 |

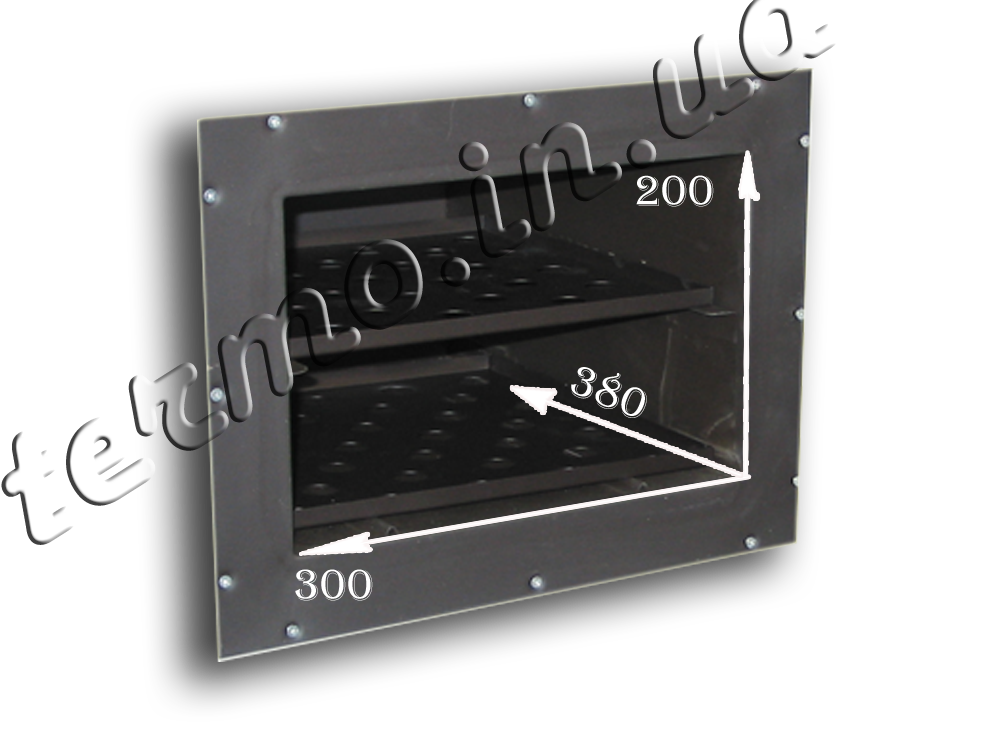

| 11. | Dimensions of the working chamber, not less than: width x length x height | mm | 300х380х200 |
| 12. | Working space size, not more than width x length x height | mm | 260х360х160 |
| 13. | Overall dimensions, less than: width x length x height | mm | 430х515х510 |
| 14. | Weight, less than | kg | 25 |
* A stable thermal regime occurs after at least 60 minutes of keeping in the set temperature, without the presence of external disturbances (opening the door, changing the temperature setting, changing the mains voltage, etc.)
** for temperature controller TermoPro 611.
*** for temperature controller TermoPro A10.
Dimensions
Package contents
Electrical cabinet СНОЛ 24/200.
Items removed from the electrical cabinet for transportation:
– shelves – 2 pcs.
Spare parts:
– fusible insert for 6A – 1 pc.
Operational documentation:
– a passport for a drying cabinet.
– certificate for temperature controller.
Other models
| Name | Т nom, °С | Power, kW / number of phases | Presence of a fan | Working chamber | |
|---|---|---|---|---|---|
| Size, mm | Material | ||||
| СНОЛ-24/200 | 200 | 1 / 1 | – | 300 х 380 х 200 | steel/stainless |
| СНОЛ-100/200 | 200 | 4 / 1 | + | 600 х 380 х 500 | steel/stainless |
| СНОЛ 20/300 | 300 | 1 / 1 | + | 300 х 340 х 200 | steel/stainless |
| СНОЛ 58/300 | 300 | 1,3 / 1 | + | 390 х 380 х 390 | steel/stainless |
| СНОЛ-75/300 | 300 | 2,2 / 1 | + | 390 х 530 х 390 | steel/stainless |
| СНОЛ-100/300 | 300 | 2,2 / 1 | + | 600 х 380 х 500 | steel/stainless |
| СНОЛ 220/300 | 350 | 3,5 / 1 | + | 600 х 620 х 600 | steel/stainless |
Warranty
The manufacturer provides a warranty for the product for 12 months. Warranty on the control unit – 18 months, on the thermoregulator series TermoPro® – 50 months.

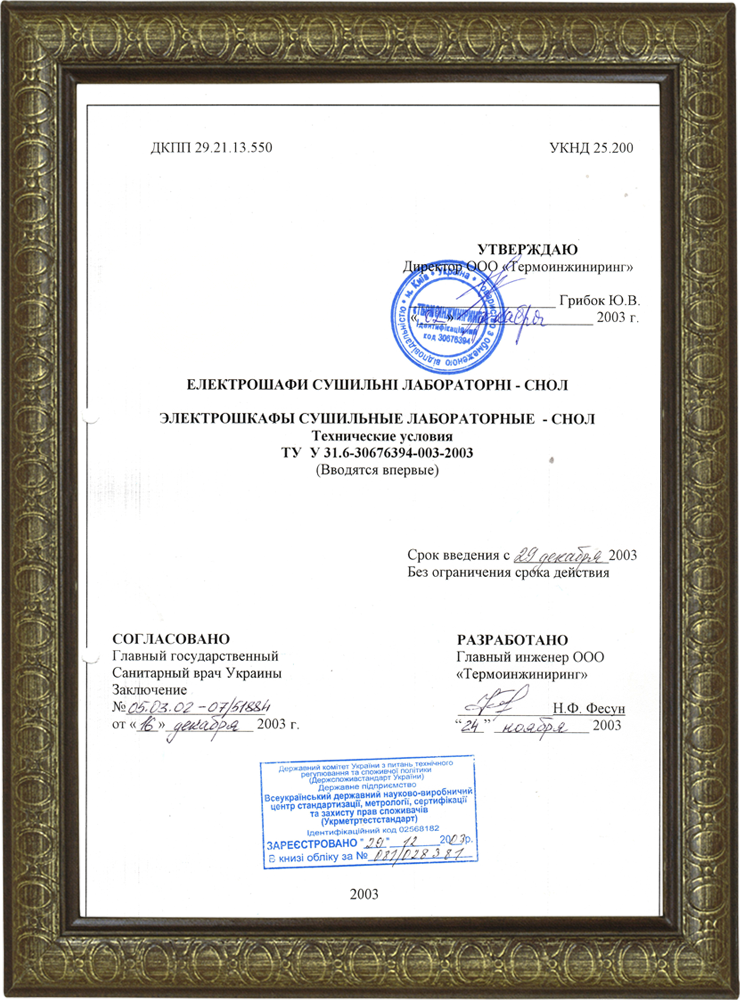

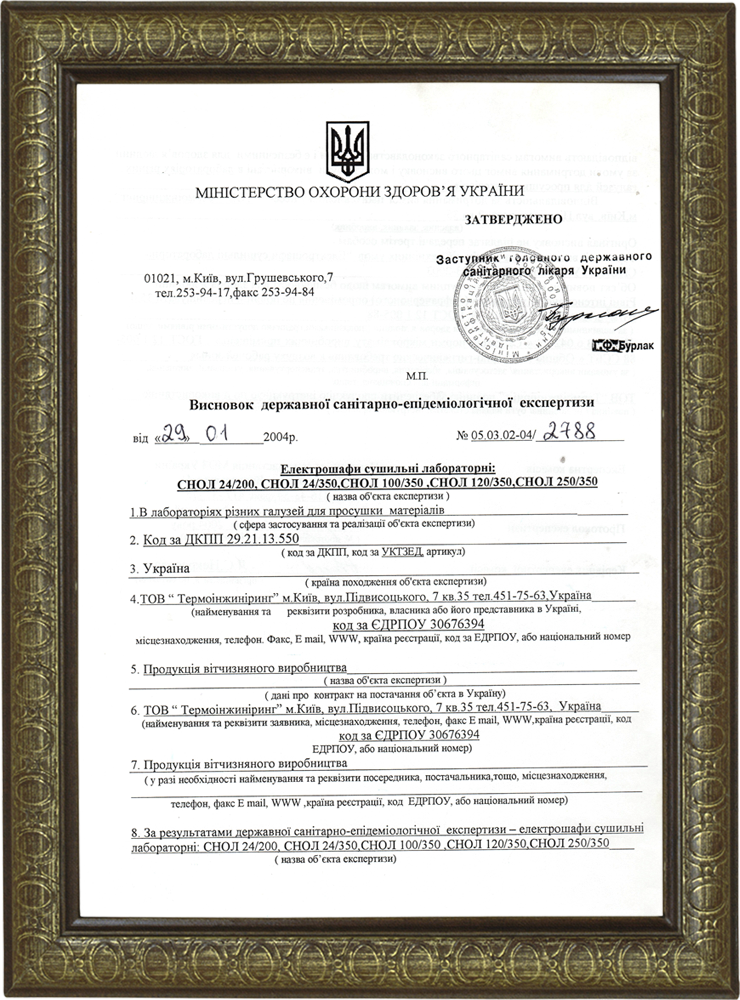

Documents
